cyber^® kit line medium – frameless-servomotorer

cyber^® kit line - servo motors in sizes 100, 112,130 and 155 mm
Different lengths per size with two mass inertia optimized hollow shaft variants
Can be used with integrated temperature sensors
Compatibility with cyber^® simco^® drive 2 servo drives

flexibla – högt moment – mycket integrerbara

Frameless-servomotorer i produktserien cyber^® kit line erbjuder maximalt moment och högsta flexibilitet i ett kompakt format. Dessutom ger frameless-konstruktionen och dess lilla och stora hålaxlar största möjliga integrerbarhet, så att du kan ta fram unika lösningar för specifika tillämpningar.

Monteringssatsen för cyber^® kit line, bestående av rotor och stator, är enkel att integrera i maskinen eftersom den finns i ett flertal varianter.
Dessutom kan motorerna användas som direktdrivningar (vridmomentmotorer).

Typiska tillämpningsområden för motorerna är t.ex.: robotar, maskinverktyg, förpackningsteknik, aktuatorer för montering, överlämnande- och hanteringssystem samt test- och mätutrustning.

Downloads

Excellent solution for complex motion tasks

High torque

Highest torque density thanks to maximum copper fill factor
Torque motor with 20 poles

Integratability

Frameless design
Small and large hollow shaft
Suitable for shrinking and gluing

Flexibility

60 V and 750 V design
Wide range of choices

Connectivity

Integrated PTC and PT1000 temperature sensor

Dynamics

Mass inertia optimized design
2 rotor variants for different applications

Reliability

Complete potting for enormous robustness
Maximum winding temperature of 155 °C for extended fields of applications
Sizing safety

Product highlights

With a wide range of choices, the cyber^® kit line offers maximum flexibility for the user. The torque-optimized motors offer a maximum of robustness due to their full potting and maximum integratability due to the frameless design with small and large hollow shaft. Combined with the integrated temperature sensors PTC and PT1000 the motors offer many possibilities in terms of connectivity.

60 V and 750 V version

Large and small hollow shaft

Integrated PTC and PT1000 temperature sensor

Several lengths per size

60 V and 750 V version

Large and small hollow shaft

Integrated PTC and PT1000 temperature sensor

Several lengths per size

Technical data

Size 100

			100-030			100-060			100-120
DC bus voltage	U_DC	V_DC	48	560	750*	48	560	750*	48	560	750*
Maximum power	P_max	W	3570	3421	4851	5727	6855	9424	8702	14919	20486
Maximum torque	M_max	Nm	16	16		32,5	32,25		64,2	64,2
Maximum current	I_max	A	120	10		200	20		300	40
Continuous stall torque	M₀	Nm	5,2	5,3		8,4	8,8		15,2	16,3
Continuous stall current	I₀	A	33,4	2,8		49,4	5,2		61,5	8,8
No-load speed	n₀	min^-1	3565	3467	4658	2990	3497	4684	2226	3460	4654
Stator outer diameter	A1	mm	100
Stator length	B	mm	63			93			153
Stator stack length	B1	mm	30			60			120
Rotor inner diameter	D	mm	24 \| 56

*These are machines having standard values set to a DC bus voltage of 560 V.
The motors can be operated safely up to a DC bus voltage of 750 V.

Size 112

			112-030		112-060		112-120
DC bus voltage	U_DC	V_DC	560	750*	560	750*	560	750*
Maximum power	P_max	W	4771	6630	7696	10562	13264	18513
Maximum torque	M_max	Nm	22,6		45,5		90,4
Maximum current	I_max	A	15		26		41
Continuous stall torque	M₀	Nm	7,1		11,6		21,51
Continuous stall current	I₀	A	3,9		6		8,1
No-load speed	n₀	min^-1	3554	4771	3055	4092	2434	3268
Stator outer diameter	A1	mm	112,5
Stator length	B	mm	62		92		152
Stator stack length	B1	mm	30		60		120
Rotor inner diameter	D	mm	30 \| 63

*These are machines having standard values set to a DC bus voltage of 560 V.
The motors can be operated safely up to a DC bus voltage of 750 V.

Size 130

			130-030		130-060		130-120
DC bus voltage	U_DC	V_DC	560	750*	560	750*	560	750*
Maximum power	P_max	W	5500	7596	8463	11686	12991	17960
Maximum torque	M_max	Nm	27,91		47,96		93,44
Maximum current	I_max	A	15		20		30
Continuous stall torque	M₀	Nm	10,47		17,76		30,33
Continuous stall current	I₀	A	5		6,9		9,1
No-load speed	n₀	min^-1	3102	4164	2502	3352	1952	2617
Stator outer diameter	A1	mm	130
Stator length	B	mm	64		94		154
Stator stack length	B1	mm	30		60		120
Rotor inner diameter	D	mm	30 \| 76

*These are machines having standard values set to a DC bus voltage of 560 V.
The motors can be operated safely up to a DC bus voltage of 750 V.

Size 155

			155-045		155-090		155-135
DC bus voltage	U_DC	V_DC	560	750*	560	750*	560	750*
Maximum power	P_max	W	9352	12763	15316	20835	18238	24701
Maximum torque	M_max	Nm	55,67		110,2		174,91
Maximum current	I_max	A	25		40		50
Continuous stall torque	M₀	Nm	23,4		40,25		57,37
Continuous stall current	I₀	A	9,4		13,1		14,6
No-load speed	n₀	min^-1	2600	3501	2109	2832	1659	2221
Stator outer diameter	A1	mm	155
Stator length	B	mm	83		128		173
Stator stack length	B1	mm	45		90		135
Rotor inner diameter	D	mm	35 \| 82

*These are machines having standard values set to a DC bus voltage of 560 V.
The motors can be operated safely up to a DC bus voltage of 750 V.

Applications

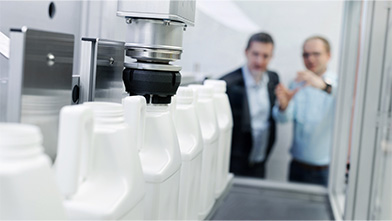

Frameless servo motors pave the way for packaging innovation

IMAGINE Engineering relies on our drives for the induction sealer.
