cyber® force actuator – linear actuators

  • cyber® force motor

  • Product family cyber® force motors

  • cyber® force motor

  • cyber® force motor

reliable – compact – precise

Durch die Integration einer hochpräzisen Spindel in den Servomotor sind die cyber® force motors besonders platzsparend und dadurch flexibel einsetzbar. Die Antriebe sind sehr zuverlässig, präzise und extrem langlebig. Aufgrund der intelligenten Konstruktion wird eine überdurchschnittliche Dynamik erreicht.



Wir sind mit den cyber® force actuators ein weltweiter Partner im Encompass-Programm von Rockwell Automation.

Customized solutions

We will develop a solution for you that is tailored to your drive needs. You will benefit from our years of experience, our highly skilled staff and our services. Please contact us.

Contact form

WITTENSTEIN cyber motor GmbH - Walter-Wittenstein-Straße 1

WITTENSTEIN cyber motor GmbH

Walter-Wittenstein-Straße 1

97999 Igersheim

+49 7931 493-15800

+49 7931 493-10200

www.wittenstein-cyber-motor.de

  • Product overview
  • Options
  • Technical specifications
Our motorYour benefits
  • Fully integrated units with motor, spindle, encoder and brake
  • Power-dense servo motors with high overload capacity
  • Movement with positional and repeat accuracy
  • Precise power, speed and position regulation
  • Use of top-quality materials and components
  • Maximum power thanks to optimized motor and mechanical design

  • Ready-to-install solutions with minimal space requirements
  • Compact drives for dynamic processes
  • Exact positioning with minimal installation space
  • Reproducible and monitorable processes
  • Maximum reliability and service life
  • Minimal cycle times





VariantsOptionsUse in harsh ambient conditions

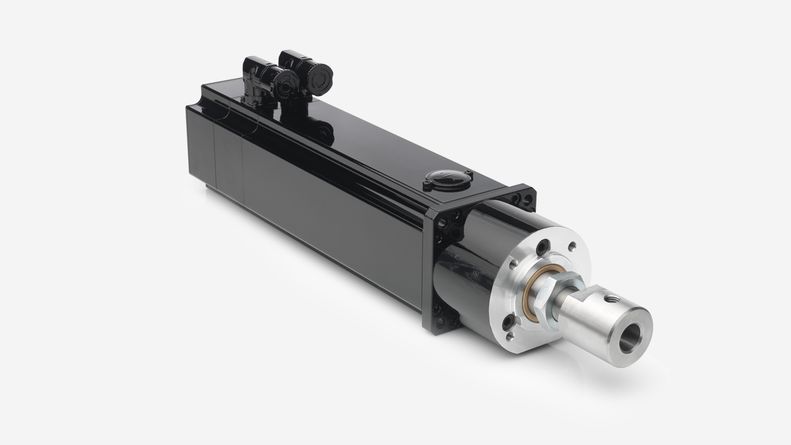

  • Electric cylinder with directly driven spindle rod
  • Linear actuator with fully integrated spindle rod

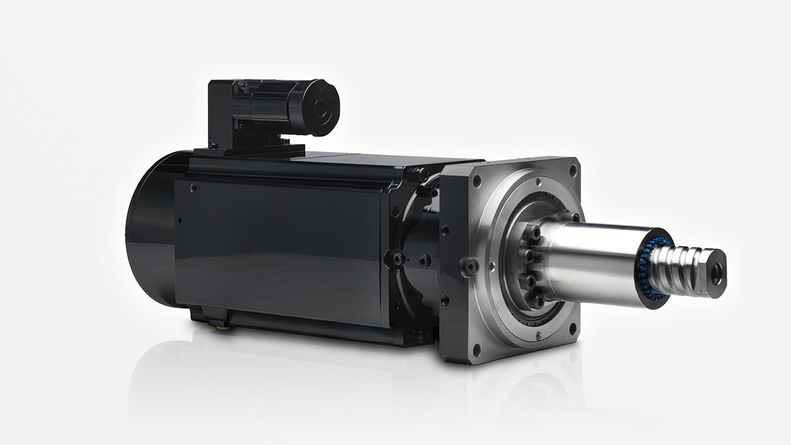

  • Hollow shaft motor with penetrating spindle rod
  • Lifting and rotating unit for independent rotary and linear movement





  • Integrated holding brake
  • Liquid cooling with process water or fresh water
  • Integrated anti-twist protection
  • Application-specific screw drive (ball,
    planetary roller, trapezoidal screw drive)
  • Tool holder as per DIN, spherical or customized
  • Mounting flange with wall, flange or spherical holder





  • High temperatures of up to 300°C
  • Radiation energy of up to 107 Gy
  • Vacuum of up to 10-8 mbar
  • ATEX as per standard EN 6079
  • Use in the foodstuff industry and in cleanrooms
  • Protection rating of up to IP69K







Unit040-027100-045100-090135-045165-180190-165220-120 220-180
Peak forcekN21221206580100 150
Maximum speedmm/s200300300300300300400400
Motor lengthmm137324471397794 408410507
Strokemm100140200140400210 210280
Flange dimensionsmm40100100135165325310310

Specifications subject to change.
