Winding is adapted to achieve the required speed, torque, voltage or current input.

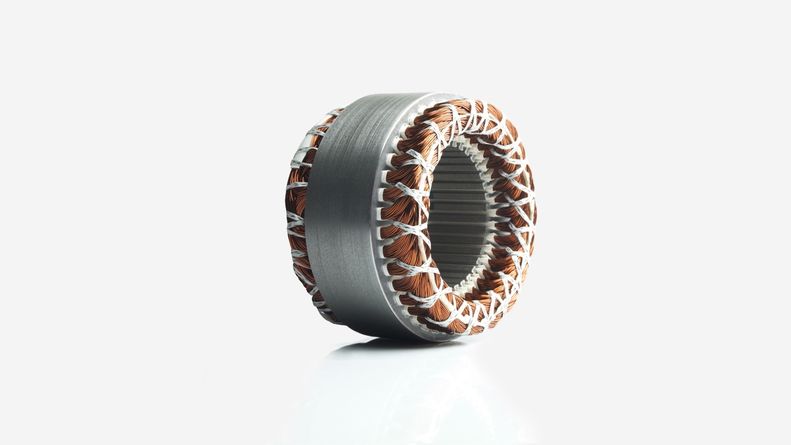

cyber® kit motor – frameless servo motors

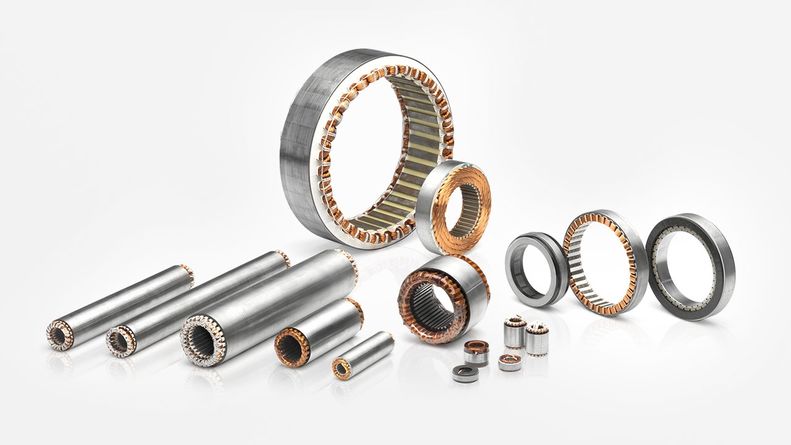

cyber® kit motors product family
cyber® kit motor power-optimized
cyber® kit motor torque-optimized

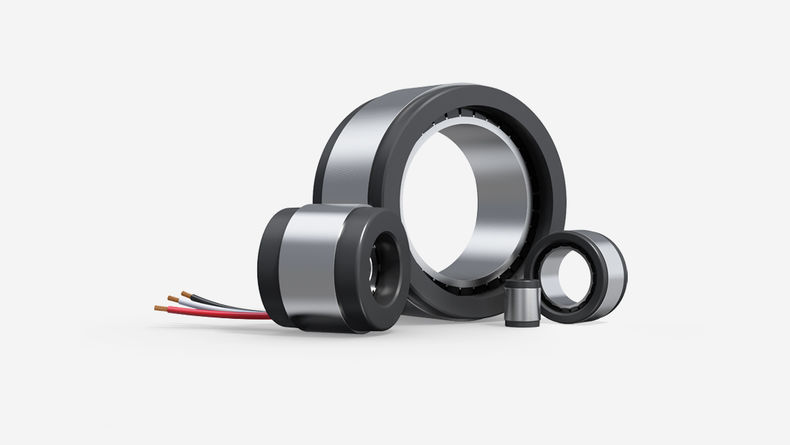

Product family cyber® kit motors

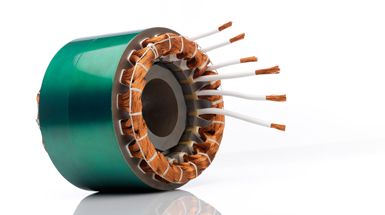

cyber® kit motor
compact – dynamic – highly integrable
Die Servomotoren aus der Produktfamilie der cyber® kit motors bieten ein Höchstmaß an Leistung und Flexibilität in kompakter Baugröße. Die gehäuselose Ausführung von Stator und Rotor gibt dem Konstrukteur größtmögliche Integrationsfreiheit, um einzigartige Lösungen für spezifische Applikationen zu entwickeln.
Wir sind mit den cyber® kit motors ein weltweiter Partner im Encompass-Programm von Rockwell Automation.
WITTENSTEIN cyber motor GmbH
Walter-Wittenstein-Straße 1
97999 Igersheim
Your Benefits
Compact design
- Maximum torque density
- Power density up to 10 kW/kg
- Low axial length due to minimized height of winding head
Efficiency
- Low power losses
- Low mass inertia
- Increased heat dissipation
Robustness
- Potted stators
- Test bench for frameless motors
- Extended and customized testing
Suitable for integration
- Support with integration (magnet retaining sleeve, insertion fixture)
- Customer-specific interfaces (mounting pattern, motor shaft, etc.)
- Expansion of the scope of delivery to provide a ready-to-install system
Precision
- Optimized synchronization characteristics
- Low torque ripple
- Minimal cogging torque
Flexibility
- Stator diameters from 19 mm to 440 mm
- Voltages up to 750 VDC possible
- Power & torque-optimized versions
Product range

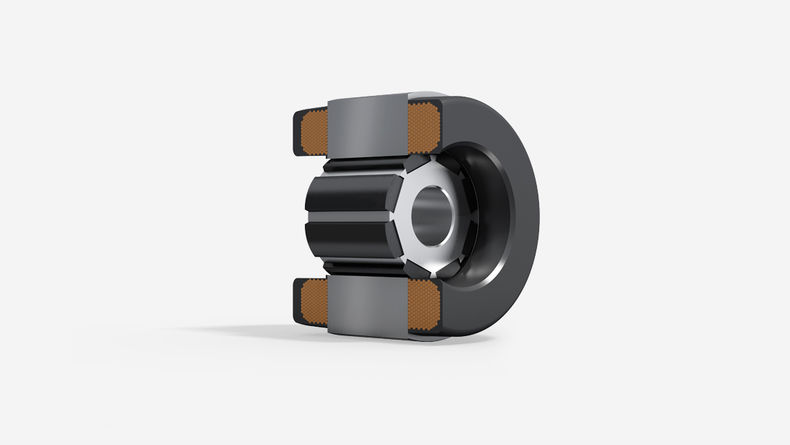

Power-optimized
The power-optimized cyber® kit motors distniguish with their low no. of pole pairs
by a high overload capacity and low cogging. Espacially the combination of efficiency
and diversity abets the use in cusomized applications with requirements for maximum
integration and compactness.
Nennspannung 24 bis 750VDC
Nominal voltage 24 to 750 VDC
Geringe Polpaarzahl
Low no. of pole pairs
Geringes Rastmoment
Minimal cogging torque
Hohe Überlastfähigkeit
High overload capacity
Vergossene Statorwicklung
Potted stator winding

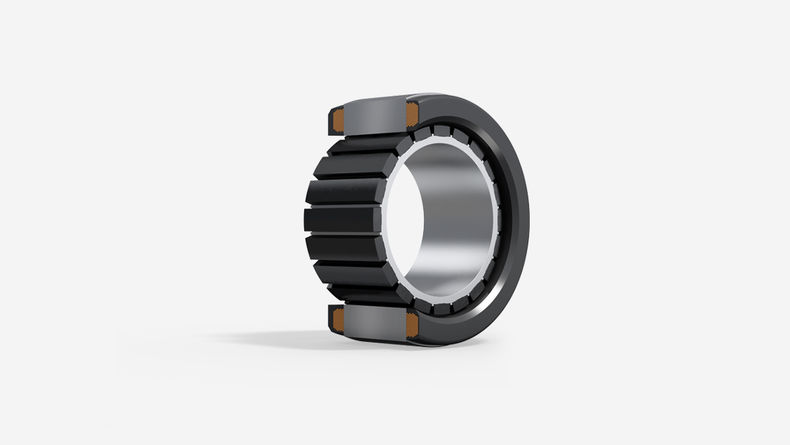

Torque-optimized
A high no. of pole pairs and optimized mass inertia distinguish the
torque-optimized cyber® kit motors. Especially in moved axes the motors
offers maximum flexibility and due to their large hollow shaft are designed
to carry through miscellaneous components.
Große Hohlwelle bis ¾ des Außendurchmessers
Large hollow shaft up to ¾ of outer diameter
Dauerdrehmoment bis 1500 Nm
Continuous torque up to 1500 Nm
Optimierte Massenträgheit
Optimized moment of inertia
Vergossene Statorwicklung
Potted stator winding

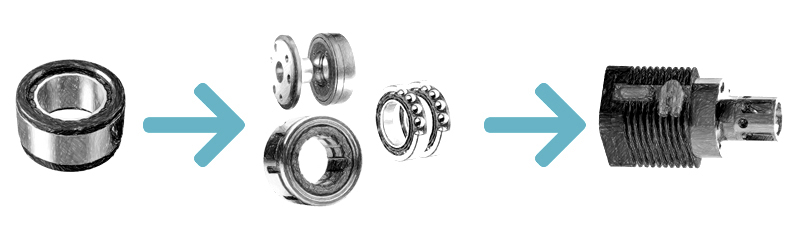

Integration in the overall system
We simplify and speed up integration in your application.
Maximum efficiency and superior performance data in a limited space are typical requirements for frameless motors. We can help you achieve ideal integration in your system. We can modify the interface and/or scope of delivery to ensure reliable and cost-effective installation.
