cyber® dynamic motor – brushless servo motors

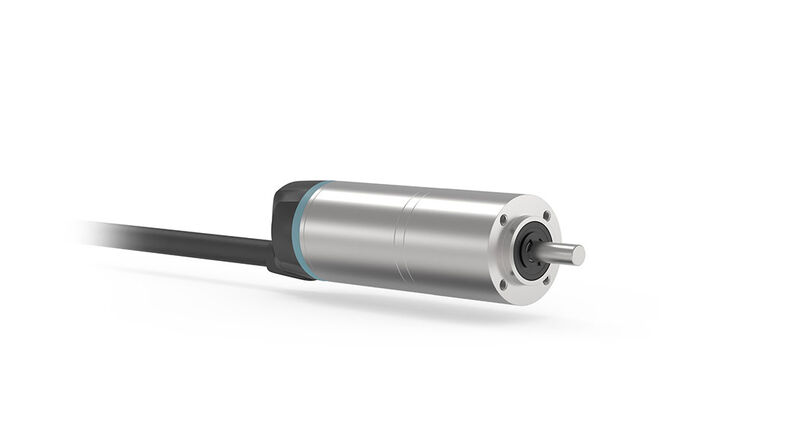

  • Servo motor cyber® dynamic line

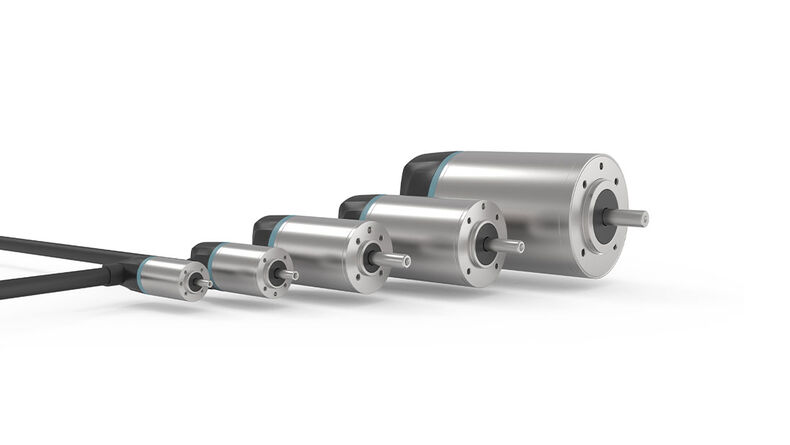

  • Product family cyber® dynamic line

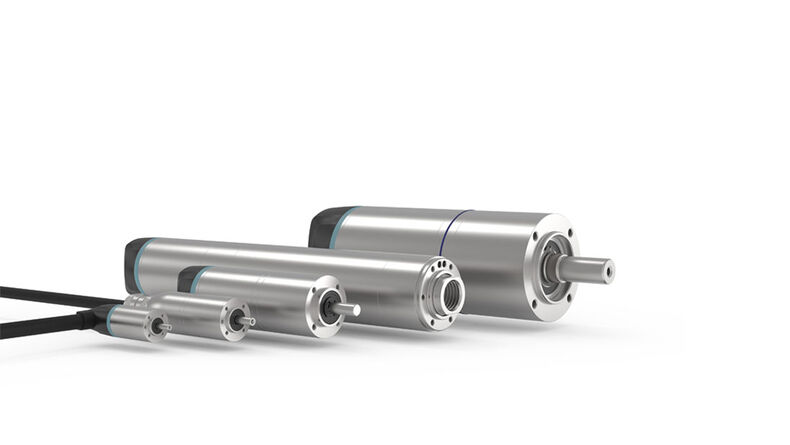

  • Servo motor, rotative actuator or linear actuator

  •

  • Servo motor cyber® dynamic line with gearbox

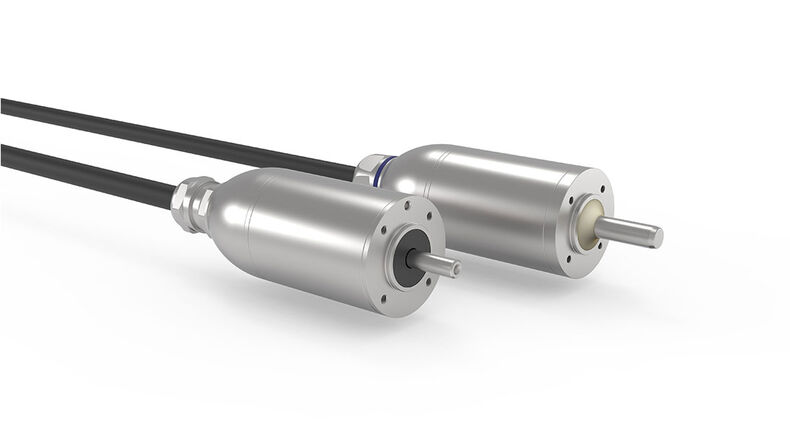

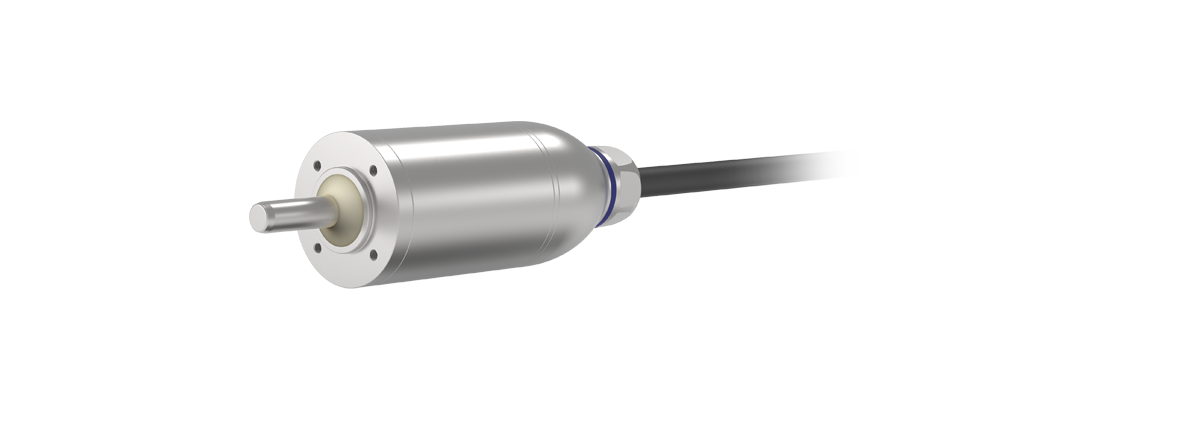

  • Servo motor cyber® dynamic line – Inox Design and Hygienic Design
  • Small servo drive system: cyber® simco® drive 2, cyber® dynamic system and cyber® dynamic line

dynamic – high torque – efficient

cyber® dynamic line servomotors are the smart choice for limited space applications. These stainless steel housed motors are equipped with absolute feedback (Singleturn and Multiturn) and deliver unparalleled performance, reliability and value from the smallest package.
The motors can be optionally extended with a holding brake in Inox- and Hygienic design, planetary gearboxes or ball screws.


For a reduced project planning workload in your electrical design, the products are now available in EPLAN.



With the cyber® dynamic motors we are a worldwide partner in the Encompass program of Rockwell Automation.

Excellent solution for complex motion tasks

Industrial grade

  • Built-in absolute encoder
  • High quality stainless steel housing
  • Single-cable solution (suitable for cable carriers, EMC shielded)
  • Protection class up to IP69K

Dynamics

  • Maximum acceleration thanks to high overload capacity and low mass inertia
  • Ideal for dynamic processes with short cycle times

Compactness

  • Round design with very high torque density
  • Built-in absolute-encoder Singleturn
  • Built-in absolute-encoder Multiturn (size 32/40)

Precision

  • Precise and flexible position control

Reproducibility

  • High process reliability thanks to reproducible processes
  • Easy connection to your fieldbus systems

Efficiency

  • Energy efficient, maintenance free drives
  • Less heat dissipation

Connectivity

  • Numerous real-time capable fieldbuses to connect to your fieldbus systems
  • Automatic motor parameterization thanks to the electronic identification plate

Consulting and sizing

  • Individual on-site consulting
  • Sizing with cymex®
  • Documentation in EPLAN

Product variants

Small servo drive system

High-dynamic servo motors in the sizes 17 - 40 mm (optionally with gearbox and ball screw drive)

Numerous fieldbus interfaces and decentral intelligence

Safe shutdown of the system in case of emergency thanks to integrated STO (Safe Torque Off) safety function according to SIL3 without loss of productivity

Space-saving installation thanks to stackability and user-friendly pin assignment

Electronic name plate enables automatic and safe parametrization of the motor

Simple installation in the machine without an additional enclosure thanks to protection class IP65

The cyber® simco® drive 2 servo drive, the cyber® dynamic line motor series and the cyber® dynamic system are a complete match in every respect.

You can choose between numerous different fieldbus interfaces for easy connection to your higher-level controller.
