Premium Linear Systems

  • Premium Linear System with RP+ planetary gearbox and innovative rack INIRA®

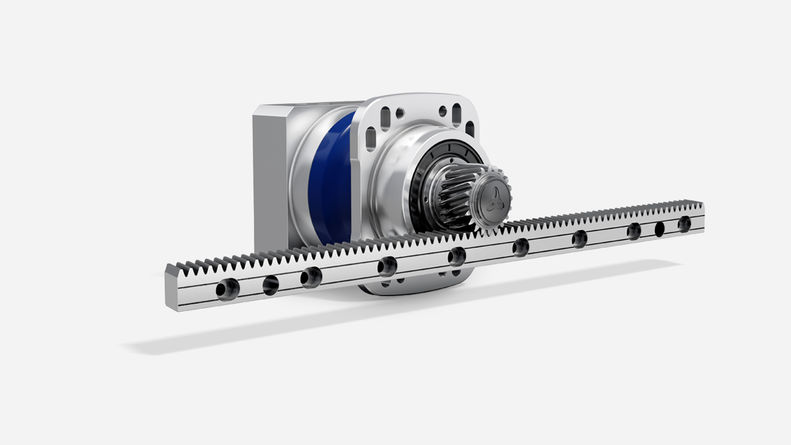

  • Premium Linear System with XP+ planetary gearbox and innovative rack INIRA®
  • Premium Linear System with RPK+ hypoid gearbox and innovative rack INIRA®
  • Premium Linear System with RPC+ bevel gearbox and innovative rack INIRA®

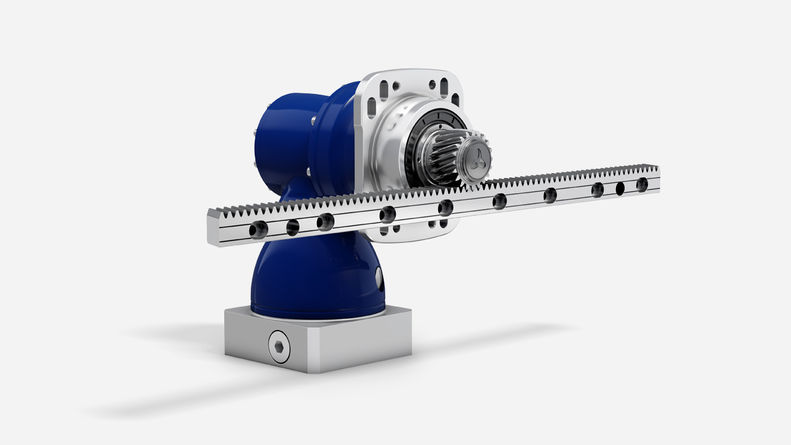

  • Premium Linear System with XPK+ hypoid gearbox with slotted holes and innovative rack INIRA®

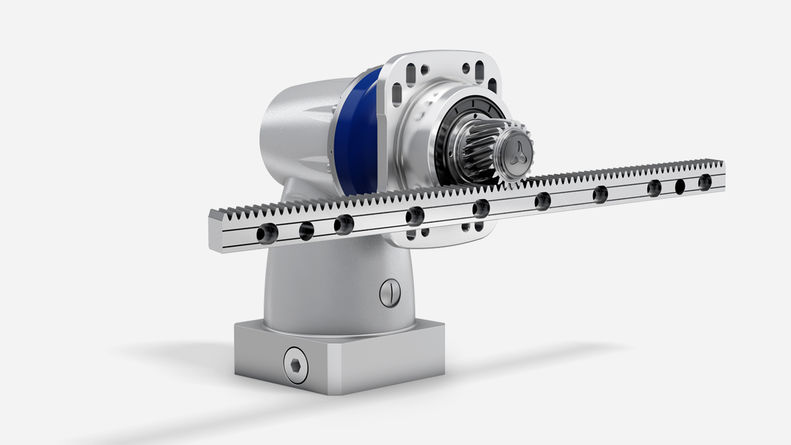

  • Premium Linear System with XPCR+ bevel gearbox and innovative rack INIRA®
  • INIRA® – The revolution in rack assembly

Perfection in use

Our Premium Linear Systems are optimized for applications with high to very high smooth running, positioning accuracy and moving force requirements. They combine drives producing maximum power density with very high overall linear stiffness – as well as extreme precision, both in the decentralized drive and in the master-slave configuration, for unprecedented degrees of freedom in the design. The option of downsizing moreover results in significant potential savings in the drive train. The systems are suitable for use in laser machines, CNC machining centers for wood, plastic and composite materials, metal-cutting machine tools such as HSC milling machines and precise, highly dynamic handling applications.
INIRA® – The revolution in rack assembly is now available

Customized solutions

We will develop a solution for you that is tailored to your drive needs. You will benefit from our years of experience, our highly skilled staff and our services. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Further options
Premium Linear System — XP+max. feed force [N]max. speed [m/min]
PLS 55450333
PLS 88350244
PLS 1110700333



Premium Linear System — RP+max. feed force [N]max. speed [m/min]
PLS 2020300250
PLS 2222200104
PLS 3636100112
PLS 4747200135
PLS 757500091
PLS 112112000111

Feed force and feed speed depending on ratio.



The Premium Linear System can also be supplied with the right-angle gearbox RPK+, RPC+, XPK+, XPC+ as well as with the actuator version RPM+. The system is also available with innovative rack assembly.
